Our machinery

Lamination and coating - quick and efficient

Our large machinery consists of four lamination machines and a coating machine, the most important of which were built inhouse by KAPAG to perform to an unparalleled level of quality.

We laminate and coat with a passion, be it reel- to-reel, reel-to-sheet or sheet-to-sheet compounds, from ca. 90g/m2 to 5mm thick and from 0.5m to nearly 2.5m wide.

Our sheet and reel cutters, guillotines and bookbinder’s board cutter cope easily with unusual sheet sizes or reel widths.

Lamination machines

Two- to five-ply reel-to-sheet lamination

  • Lamination of paper, paperboard and foil, with inline sheet cutter
  • Paper from ca. 75g/m², paperboard to ca. 1200g/m²
  • Employable width: from 500mm to 1500mm
  • Sheet length: from 600mm to 2500mm
  • Finished thickness: from 400g/m² to 2600g/m²
  • Core diameter for reel unwinding: 70 / 76 / 100 / 150 / 300mm

Two- to three-ply reel-to-sheet lamination

  • Lamination of paper and paperboard, with inline sheet cutter
  • Paper from ca. 75g/m², paperboard till ca. 1200g/m²
  • Employable width: from 500mm to 1500 mm
  • Sheet length: from 600mm to 2500 mm
  • Finished thickness: from 400g/m² to 1600g/m²
  • Core diameter for reel unwinding: 70 / 76 / 100 / 150 / 200 / 300mm

Two-ply reel-to-reel lamination

  • Lamination of paper and thin paperboard
  • Paper from ca. 90g/m², thin paperboard to ca. 300g/m²
  • Employable width: from 700mm to 2480mm
  • Finished thickness: from 190g/m² to 550g/m²
  • Core diameter for reel unwinding: 76 / 100 / 150 / 300mm

Two- to six-ply sheet-to-sheet lamination

  • Lamination of paper, paperboard, corrugated board, textiles and foil
  • Max. sheet width: 1400mm
  • Max. sheet length: 1840mm
  • Finished thickness: up to 5mm

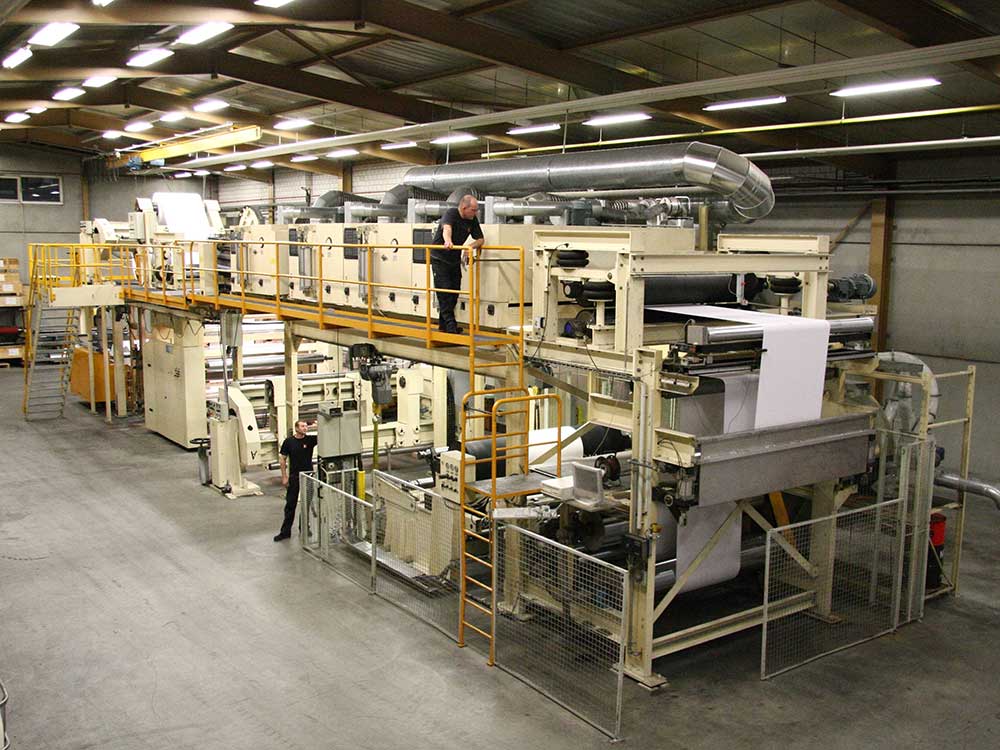

Coating machine

  • Coating of paper (from ca. 90g/m²) und paperboard (to ca. 550g/m²)
  • Employable width: from 700mm to 2480mm
  • Barrier, anti-static, sealable and skid-proof coatings
  • Hydrophobic and other functional coatings are feasible
  • Coating thickness: from as little as a few g/m² up to 20 + g/m²
  • Core diameter for reel unwinding: 76 / 100 / 150 / 300mm

Sheet cutter (x2)

  • Reel-to-sheet cutting
  • From 90g/m² to 1000g/m²
  • Min. sheet size: 500mm x 500mm
  • Max. sheet size: 1800mm x 2685mm

Guillotine (x3)

  • Reel-to-sheet cutting
  • From 140g/m² to 2600g/m²
  • Min. sheet size: dependent on material used
  • Max. sheet size: 120mm x 1600mm

Book binder’s board sheet cutter

  • Sheet-to-sheet cutting
  • From ca. 700g/m² to ca. 2400g/m²
  • Min. sheet size: 100 x 130mm
  • Max. sheet size: 1280 x 1280mm

Slitter rewinder

  • Slicing large reels into smaller reels
  • From ca. 40g/m² to ca. 700g/m²
  • Min. reel width: 25mm
  • Max. reel width: 1500mm
  • Core diameter for unwinding: 70 / 76 / 100 / 150 / 200 / 300mm
  • Core diameter for rewinding: 70 / 76 / 120 / 150 / 200mm
